4 inch carbon fiber tube
4 inch carbon fiber tube from JCC is manufactured by roll-wraped process with the high-quality carbon fiber fabric with epoxy resin to offer a range of carbon fiber pipes for your various requirements.
Also our 4 inch carbon fiber tube can be manufactured by filament wound process with the multiple fiber and resin are mixed and matched to make sure a high-strength tubes for many applications.
What's the difference of roll-wraped and filament wound process for JCC 4 inch carbon fiber tube
The difference between roll-wrapped and filament-wound of JCC 4 inch carbon fiber tubes depend on their fabrication processes, resulting in distinct properties and applications as below：
- Manufacturing Process: Roll-wrapped involves multilayer prepreg carbon fiber fabric, while filament-wound uses continuous fiber winding.
- Strength Orientation: Our 4 inch roll-wrapped tubes offer good mechanical properties in many direction based on fiber laying in different directions , whereas filament-wound tubes have extremely high strength in the direction of fiber winding.
- Surface Finish: JCC 4 inch roll-wrapped carbon fiber tubes have a smoother finish, while filament-wound tubes may have a rougher texture.
- Applications: JCC 4 inch roll-wrapped tubes are usually used in high-precision and high-performance of applications, while filament-wound tubes are preferred for high-pressure or high-load environments.

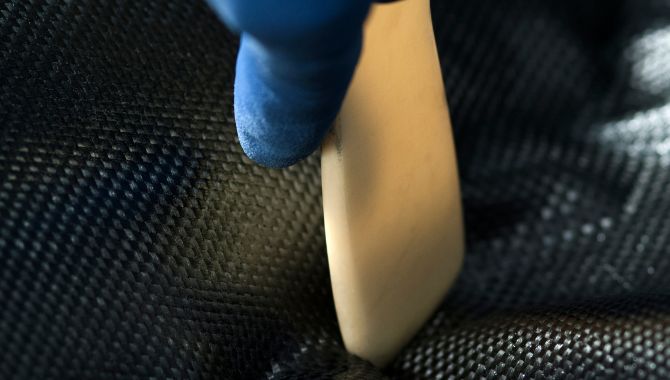

Customizable thickness and length of JCC 4 inch carbon fiber pipes
Our 4 inch carbon fiber tubes not only offer superior strength and lightweight properties, it can also be customized according to the specific needs of clients. During the manufacturing process, we can precisely control the thickness and length of the pipe to meet the requirements of various application scenarios by mold with multiple layers prepreg carbon fiber fabric or carbon fibers & filaments.
Whether you need ultra-thin, lightweight structures or require high-strength thick-walled tubes, we have the ideal solution for you.

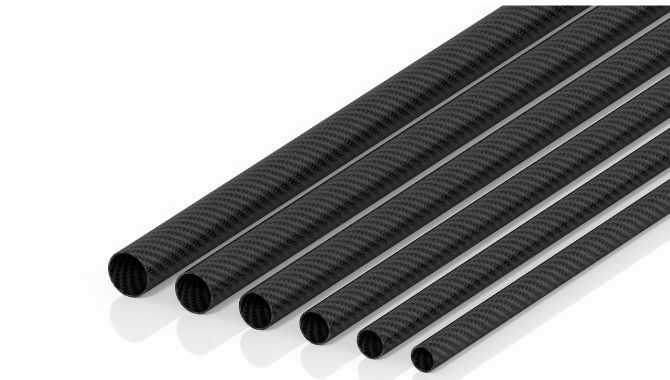

Strength Grade and Standard for JCC 4 inch Carbon Fiber tubes
Depending on your needs of the specific application, JCC 4-inch carbon fiber tubes can be designed in different strength levels to meet various technical specifications and performance requirements.
- T300
- T700
- T800
Our 4 inch Carbon Fiber tubes also use different specific fiber which have different patterns as below:
- 1k carbon fiber
- 2k carbon fiber
- 3k carbon fiber
- 6k carbon fiber
- 12k carbon fiber
- Data Sheet
| Material | 3k weave | 6k weave | 12k weave |
| Shape | Round | ||
| Lenght | 12″ | 24″ | any other size |
| Wall Thickness | 0.064″ | ||
| Ply Orientation | Woven 0/90 | ||
| Inner Diameter | 4″ | ||
| Outside Diameter | 4.128″ | ||
| Ply Orientation | 0° with 90° piles | ||
| Max Temperature | 140 F | ||
| Fiber Modulus | Standard (33 Msi) | ||
| Composition | Solid CF | ||
| Finish
Approx. Density |
Glossy
0.044 lb/in3 |
Textured | Matte |
